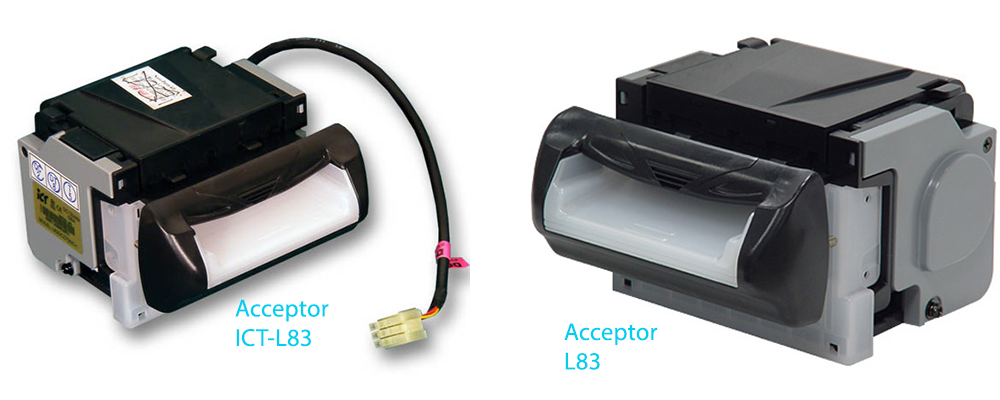

L83 Bill Acceptor

01.Fixed-width / Multi-width bill acceptable.
02.Multi-countries’ currencies acceptable.
03.New generation design of verification system.
04.Anti-stringing technologies.
05.Ability of auto calibration.
06.Lightweight and durable plastic construction.
07.Speedy bill transaction
08.Selectable interfaces.
09.Multi-colored illumination bezel design.
10.Easy maintenance.
11.Fast program update.

ICT L83 Acceptor

Bill insertion 4 – way Acceptance
Acceptance speed Approx. 1.5-3 seconds
Interface Pulse, ccTalk, RS-232, Parallel, CCNET, MDB, GBA
ID 003
Bill width 61~83 mm
Power source L83: 12V DC (10.8~13.2V)
L83#: 12V DC (10~16V)
Power consumption Standby : 0.3A, 3.6W
Operation : 1.2A, 14.4W
Maximum : 2A, 24W
Environmental conditions Operating temperature : 0° C ~ 55° C/L83# 0° C ~ 65°
Storage temperature : -30° C ~ 70° C
Humidity : 30%~85% RH ( non-condensing )
Weight Approx. 800 g (shipping)
Acceptance rate 96% or more
The second acceptance is added to the acceptance count.
Does not accept bills:
a. incomplete: very dirty, wet, torn, or wrinkled.
b. folded at the edge or corners.
c. manufacturing defects.
Features:
01.Accepts fixed width / multiple widths.
02.Accepts bills from multiple countries.
03.New generation design of verification system.
04.Anti-stringing technology.
05.Auto-calibration capability.
06.Constructed from durable and lightweight plastic.
07.Fast transactions
08.Selectable interfaces.
09.Multi-colored illuminated bezel design.
10.Easy to maintain.
11.Fast program update.

Certificates CE
Developed for Belarus, Bulgaria, Czech, (Czech+Euro), Euro, Romania, Switzerland, Uganda, Ukraine, United Kingdom.

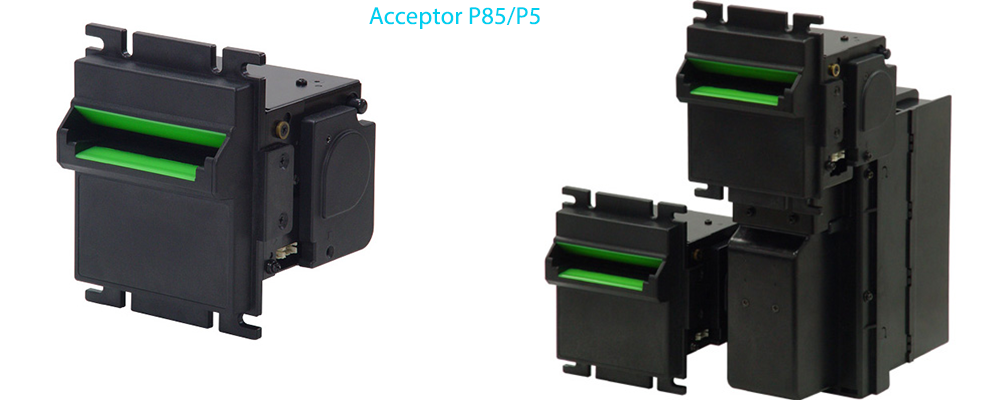

P85/P5 [W/Stacker Avaiable]

Bill insertion 4 - way Acceptance
Acceptance speed
Approx. 2 seconds ( including bill stacking )
Interface logic Pulse or RS232
Power Sources DC 12V ± 5%
Power consumption Standby : 210mA
Operating : 2A
Motor Lock : 2.15A
Environment range Operating Temperature : 0° C ~ 55° C
Storage Temperature : -20° C ~ 60° C
Humidity : 30%~85% RH ( no condensation )
Weight Approx. 1kg (shipping)
Acceptance rate 96% or more
The second acceptance is included in the acceptance count.
The following bills are excluded:
a. Incomplete bills such as extremely dirty, wetted, broken or wrinkled ones.
b. Bills folded at a corner or side.
c. Incorrect-made bills.
Features
01.Fluorescent faceplate provides clear view of the bill entry even under insufficient lighting.
02.Multi-Entry bill accommodates different sizes bills.
03.Software can be quickly updated through the built-in connector (Flash ROM).
04.The new anti-stringing function has a 99.99% success rate.
05.Ultimate acceptance rates.
06.Superior security.
07.Fast, efficient bill handling.
08.Easy to remove/open/clean acceptor.
09.Auto self-adjusting sensor system.
10.Quick to update software (flash ROM).
11.Combines the bill handling and the advanced bill recognition system to increase acceptance rates and reduce jams.
Developed for Czech, Euro, Iran, Slovakia, United Kingdom.

ICT P85 Acceptor

Bill insertion 4 – way Acceptance
Acceptance speed Approx. 2 seconds
Interface Pulse , ICT Protocol, ccTalk, ID003, MDB, Parallel
Bill width 68mm~85mm
Power source 12V DC(11.4~12.6V)
Power consumption Standby : 0.21~0.35A, 2.5W~4.2W
Operating : 2A, 24W
Maximum : 2.2A, 26.4W
Environmental conditions Operating temperature : 0° C ~ 55° C
Storage temperature : -20° C ~ 70° C
Humidity : 30%~85% RH ( no condensation )
Weight Approx. 650g ~ 750g
Acceptance rate 96% or more
The second acceptance is added to the acceptance count.
Does not accept bills:
a. incomplete: very dirty, wet, torn, or wrinkled.
b. folded at the edge or corners.
c. manufacturing defects.
Features
01.4-way insertion acceptance.
02.High acceptance rate.
03.Wide range of finishes.
04.200 or 500 bill stackers to choose from.
05.High-security protection mechanism.

Certificates CE
Developed for Bulgaria, Czech, Euro, Iran, Romania, Slovakia, Uganda, United Kingdom, Uzbekistan.
